Finite Difference Operator

Suppose we have an input image \(I\) and the following finite difference operators \(D_x\) and \(D_y\) : $$D_x = [1, -1]$$ $$D_y = \begin{bmatrix} 1 \\ -1 \end{bmatrix}$$

Cameraman Image
\(I\)

Convolving \(I\) with \(D_x\) will give us the partial derivative with respect to x, showing us the vertical edges. Convolving \(I\) with \(D_y\) will give us the partial derivative with respect to y, showing us the horizontal edges.

Before Image

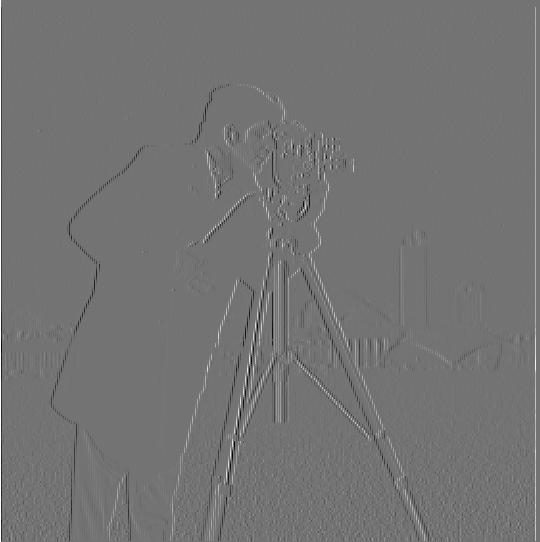

Vertical Edges
\(\frac{\partial I}{\partial x} = I * D_x\)
After Image

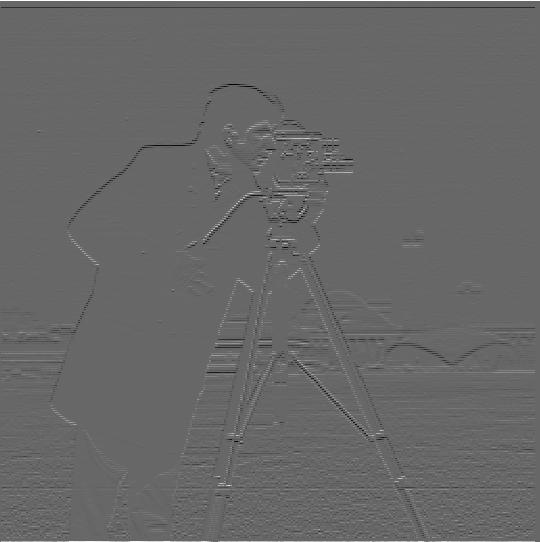

Horizontal Edges
\(\frac{\partial I}{\partial y} = I * D_y\)

Now that we have \(\frac{\partial I}{\partial x}\) and \(\frac{\partial I}{\partial y}\) we can compute the gradient magnitude image \(G\) as follows: $$G = \sqrt{\left(\frac{\partial I}{\partial x}\right)^2 + \left(\frac{\partial I}{\partial y}\right)^2}$$ We can then apply a threshold on the pixel intensities to binarize \(G\) by setting all the pixels greater than our threshold to 1, and the rest of the pixels to 0.

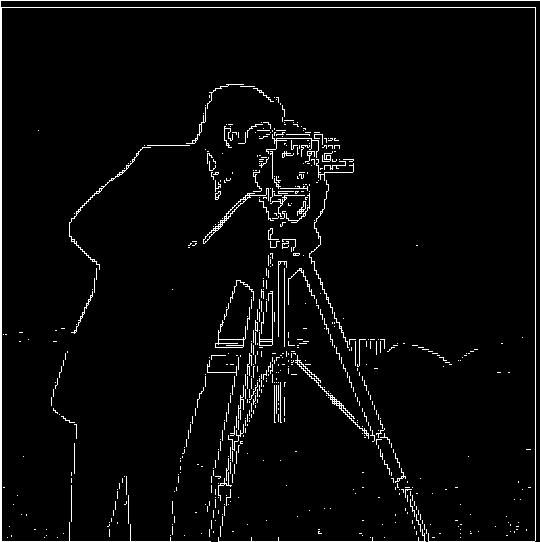

Here are the final results using a threshold of 0.25:

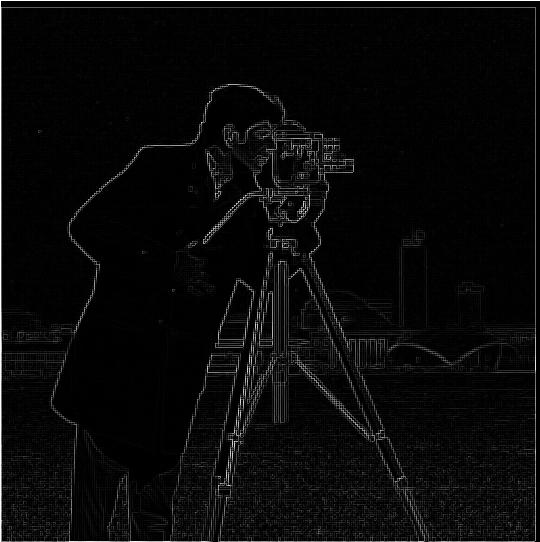

Before Image
Gradient Magnitude
After Image
Binarized

Derivative of Gaussian (DoG) Filter

Using just the difference operator can lead to noisy results. We can apply a Gaussian filter, as a smooth operation. After generating a blurred version of the original image we can repeat our procedure above to regenerate the edge image. However, to binarize this edge image with a threshold of 0.1.

Before Image
Original Image
After Image
Blurred

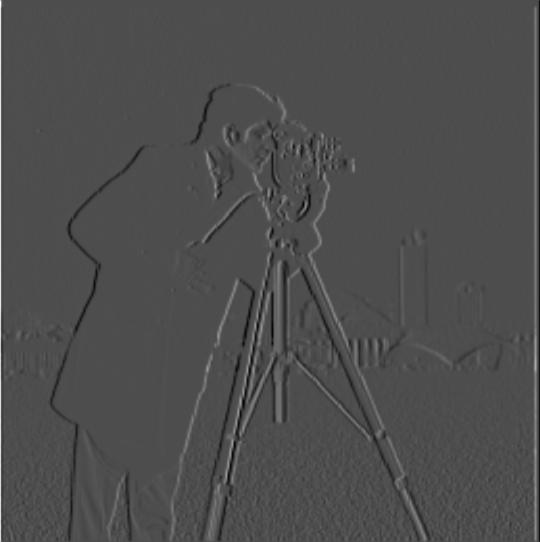

Before Image
Vertical Edges
After Image
Horizontal Edges

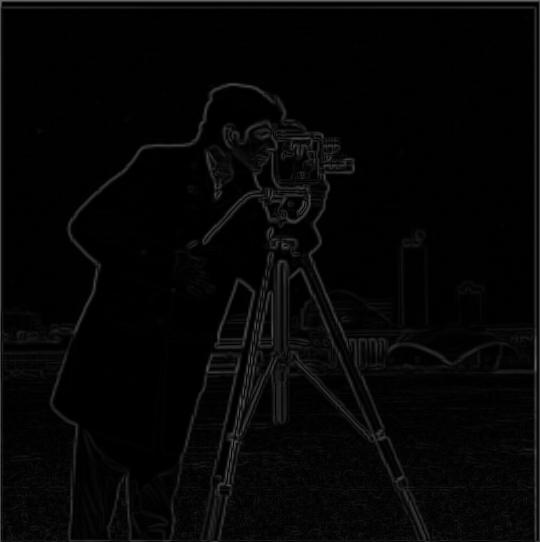

Before Image
Gradient Magnitude
After Image

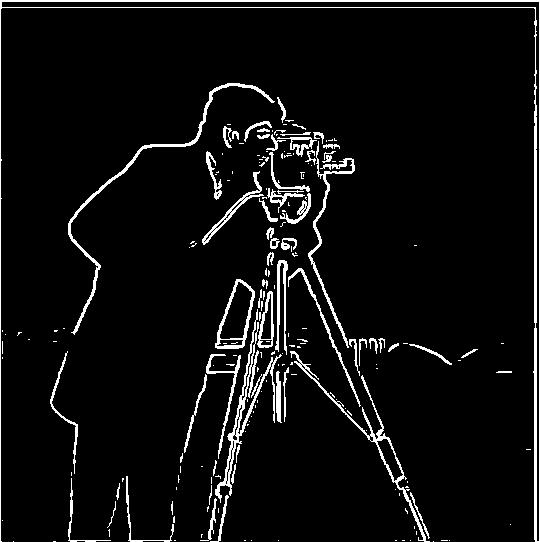

Binarized

There are noticeable differences between the binarized image when using the Gaussian filter compared to just the finite difference operator. We were to have a smoother image with less noise throughout the image, especially at the bottom. Furthermore, we also have thicker, smoother edges.

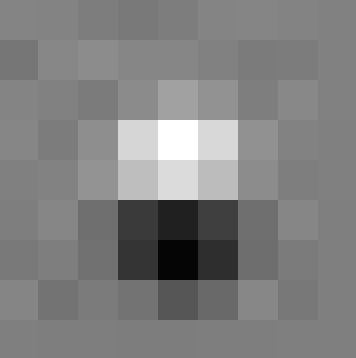

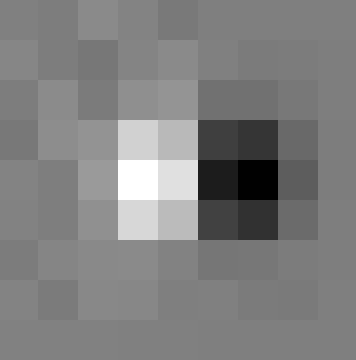

We can also get the same result if we convolve our Gaussian with \(D_x\) and \(D_y\). This will give us \(DoG_x\) and \(DoG_y\). We can then convolve \(I\) with \(DoG_x\) and \(DoG_y\) to get \(\frac{\partial I}{\partial x}\) and \(\frac{\partial I}{\partial y}\). Consequently, giving us the same gradient magnitude and edge images.

Before Image
\(DoG_x\)

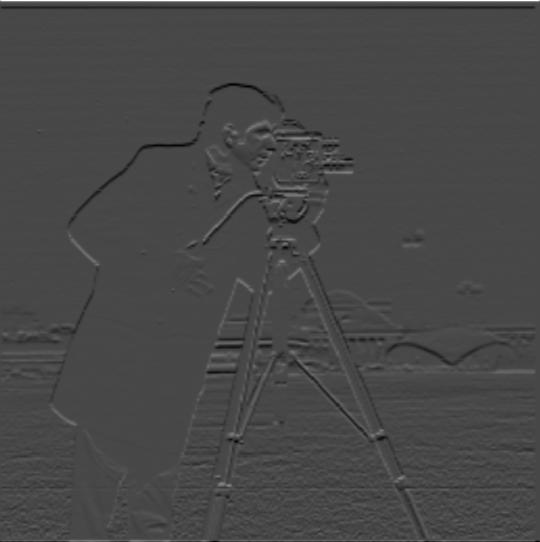

After Image
\(DoG_y\)

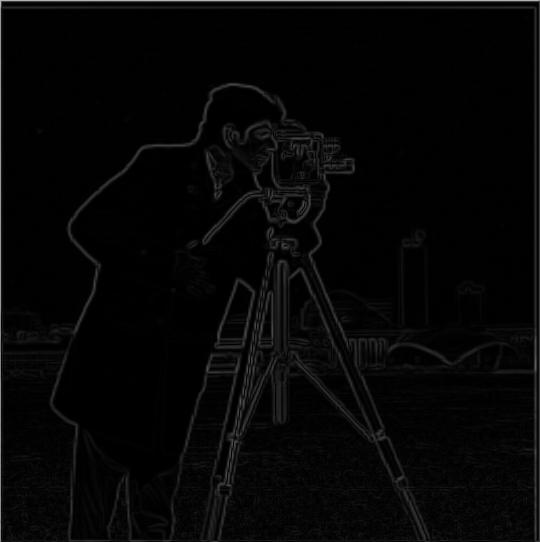

Before Image
Gradient Magnitude
After Image
Binarized

Image "Sharpening"

We can "sharpen" images by using the Gaussian filter to act as a low pass filter that only retains the low frequencies in an image. We then subtract this blurred version from the original image to get the high frequencies of an image. We can add these high frequencies with some scaling factor, \(\alpha\), to make the image appear sharper with stronger high frequencies.

Let \(G\) be our Gaussian filter, \(I\) be our original image, and \(S\) be our "sharpened" image. The procedure is as follows: $$S = I + \alpha(I - I * G)$$

We can condense this into a single convolution operation by creating the unsharp mask filter. Let \(e\) be our unit impulse kernel, which is the same size as our Gaussian kernel with 1 in the center and 0s everywhere else.

The unsharp mask filter, \(U\), is written as follows: $$U = (1 + \alpha)e - \alpha G$$

Therefore, $$S = I * U$$

Before Image
Taj Mahal: Original
After Image
Taj Mahal: Sharpened \(\alpha = 1\)
Before Image
Space: Original
After Image
Space: Sharpened \(\alpha = 2.0\)

Let's examine how effective this filter is in sharpening a sharp image that's been blurred.

Before Image
Cat: Original
After Image
Cat: Blur
Before Image
Cat: Blur
After Image
Cat: Blur Sharpened \(\alpha=5.0\)

We see that the unsharp filter mask is very effective at sharpening the edges like the whiskers to make the blurred cat seem like the sharp cat. But it fails to fully sharpen some of the finer details like the fur on the cat's forehead.

Hybrid Images

Hybrid images are static images that viewers' interpretation of change depending on their viewing distance. We can extract the high frequencies in one image using high pass filter and the low frequencies of other using a low pass filter (Gaussian filter). Once we have these frequencies, we can take the average of these two filtered images to create our hybrid image.

Viewing the hybrid image from close by will display the image we applied the high pass filter on, whereas further away we will perceive the image we applied the low pass filter on.

Derek-Nutmeg Hybrid

Derek

Image 1
Low Frequency Image

Nutmeg

Image 2
High Frequency

Derek-Nutmeg

Image 3
Hybrid Image Result

Derek-Nutmeg Fourier Analysis

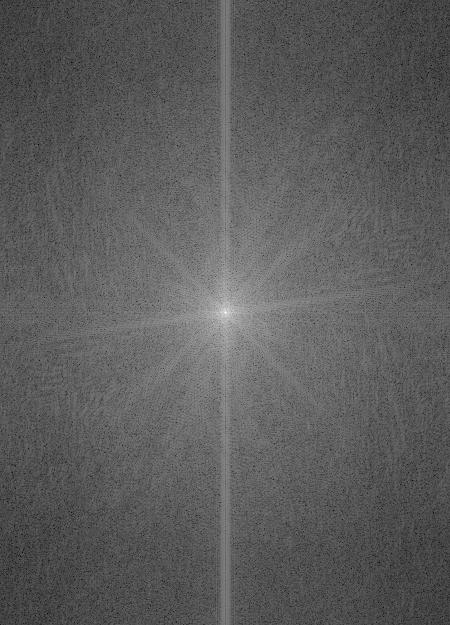

Below is the frequency analysis of the Derek-Nutmeg hybrid process using Fourier transforms. These transforms were applied on the original input images, filtered images, and the resulting hybrid image.

Derek

Before Image
Low Frequency Input Image FFT

Derek

After Image

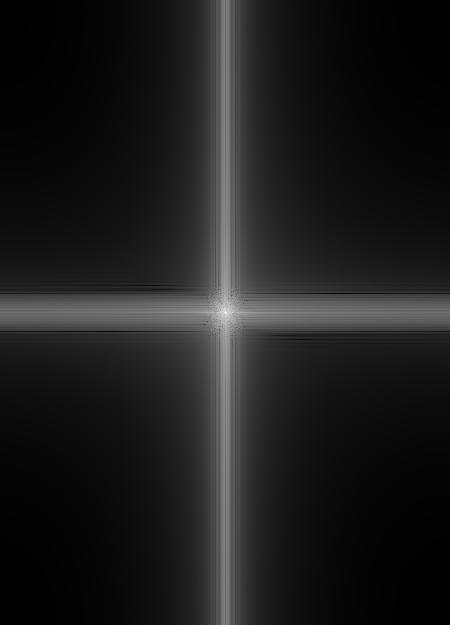

Low Frequency Filtered Image FFT

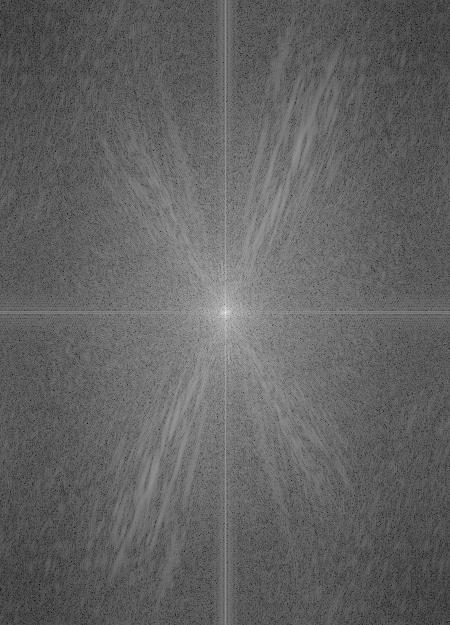

Nutmeg

Before Image
High Frequency Input Image FFT

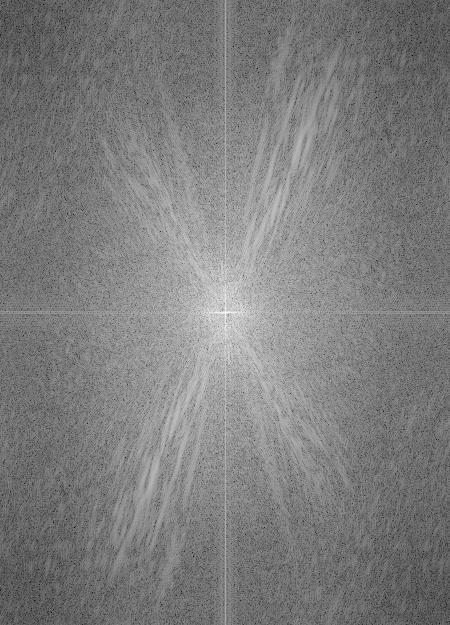

Nutmeg

After Image
High Frequency Filtered Image FFT

Derek-Nutmeg

Derek Hybrid Image

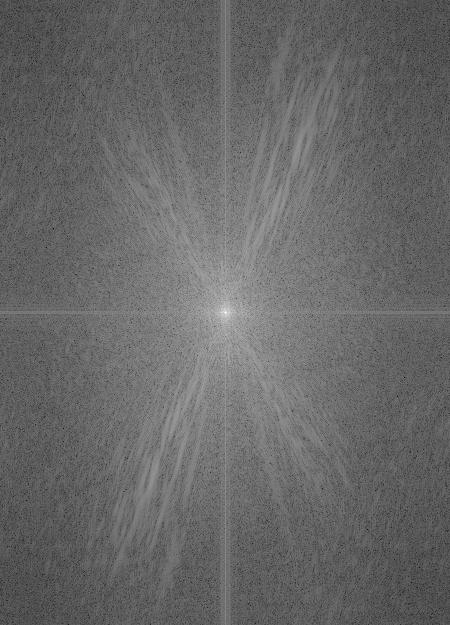

Hybrid Image FFT

Rock-Vin Diesel Hybrid

Rock

Image 1
Low Frequency Image

Vin Diesel

High Frequency

Rock-Vin Diesel

Image 3
Hybrid Image Result

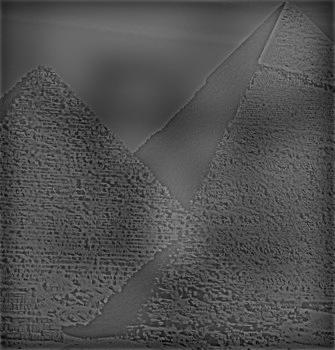

Failure Case: Squid-Pyramids Hybrid

Squidward

Image 1
Low Frequency Image

Pyramids

Image 2
High Frequency

Squid-Pyramids

Image 3
Hybrid Image Result

We see the hybrid of Squidward and the pyramids proves to be less seamless than the hybrid of the Rock and Vin Diesel. This is because finding reasonable alignment points with the pyramids and Squidward is difficult due to the differing shapes and sizes. We also see the high frequencies from the pyramids bricks are hard to reconcile with the thick strokes that compose Squidward's face. We have to apply significant blurring to Squidward to get a somewhat reasonable result, but ulimately makes the Squidward unrecognizable at large distances. However, as the low frequency image it should be visible.

Gaussian and Laplacian Stacks

To blend images together we can leverage Gaussian and Laplacian stacks. To construct a Gaussian stack, we apply a Gaussian filter to an input image. As we increase the number of levels within the stack, we increase the \(\sigma\) to create a coarser image. At each level, the size of the image remains the same. For my implementation, I scaled the \(\sigma\) by 2 after each level.

A Laplacian stack is computed by taking the difference between the current level of the Gaussian stack and previous level. The last image on the Laplacian stack is the same as the last image of the Gaussian stack.

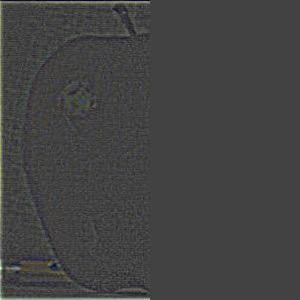

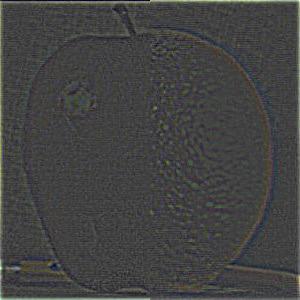

Below is a visualization of the Laplacian stack for the oraple image.

Apple

Image 1
Level 0

Orange

Image 2
Level 0

Oraple

Image 3
Level 0
Image 1
Level 2
Image 2
Level 2
Image 3
Level 2

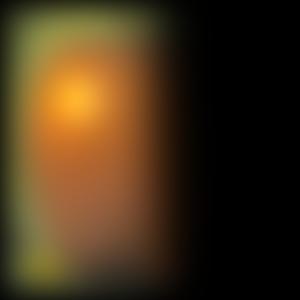

Image 1
Level 4
Image 2
Level 4
Image 3
Level 4
Image 1
Collapsed Laplacian
Image 2
Collapsed Laplacian
Image 3
Collapsed Laplacian

Multiresolution Blending

Suppose we have two images \(A\) and \(B\). To blend them using some mask \(M\) we can leverage multiresolution blending. We can compute the Laplacian stack of each input image, \(LA\) and \(LB\). After that, we compute a Gaussian stack for the mask, \(GM\). For each level, we compute a combined Laplacian stack as follows: $$LS_l(i, j) = GM_l(i, j) LA_l(i, j) + (1 - GM_l(i,j)) LB_l(i, j)$$ To get our blended image, we collapse the combined Laplacian stack.

Below are the some examples of multiresolution blending using the procedure above.

Pumona

Image 1
Puppy
Image 2
Mona Lisa
Image 3

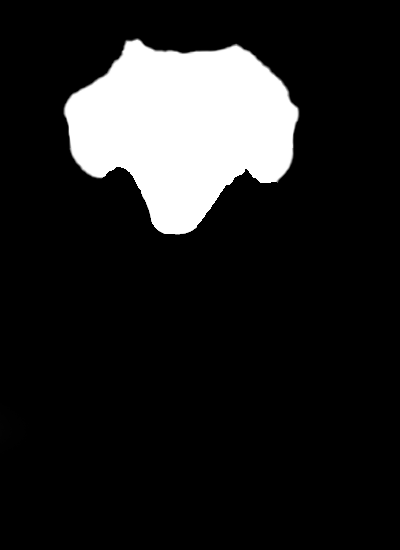

Puppy Mask

Liange

Derek Hybrid Image
Pumona

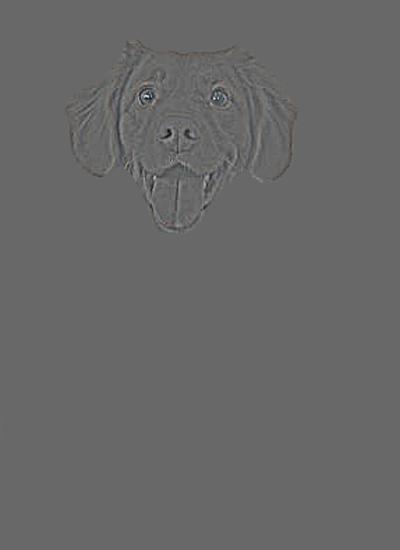

Pumona Laplacian Stack

Puppy

Image 1
Level 0

Mona Lisa

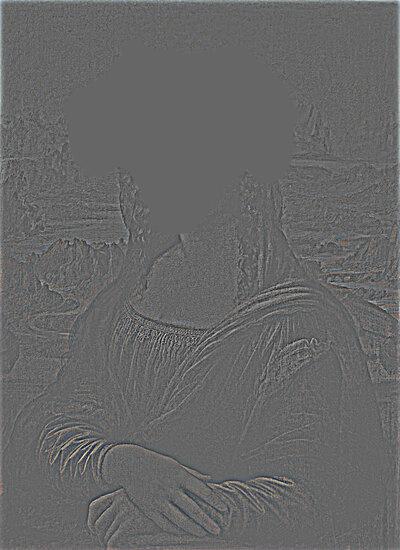

Image 2
Level 0

Pumona

Image 3
Level 0
Image 1
Level 2
Image 2
Level 2
Image 3
Level 2

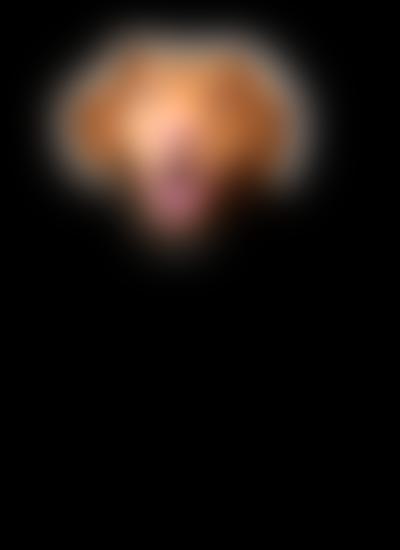

Image 1
Level 4

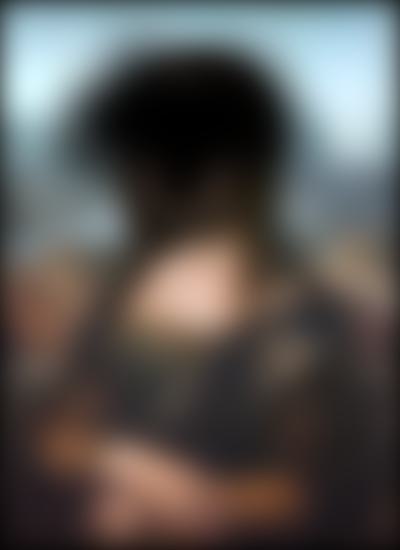

Image 2
Level 4
Image 3
Level 4
Image 1
Collapsed Laplacian
Image 2
Collapsed Laplacian
Image 3
Collapsed Laplacian

Liange

Image 1
Lime
Image 2
Orange Slice
Image 3
Lime Mask

Liange

Derek Hybrid Image
Liange
